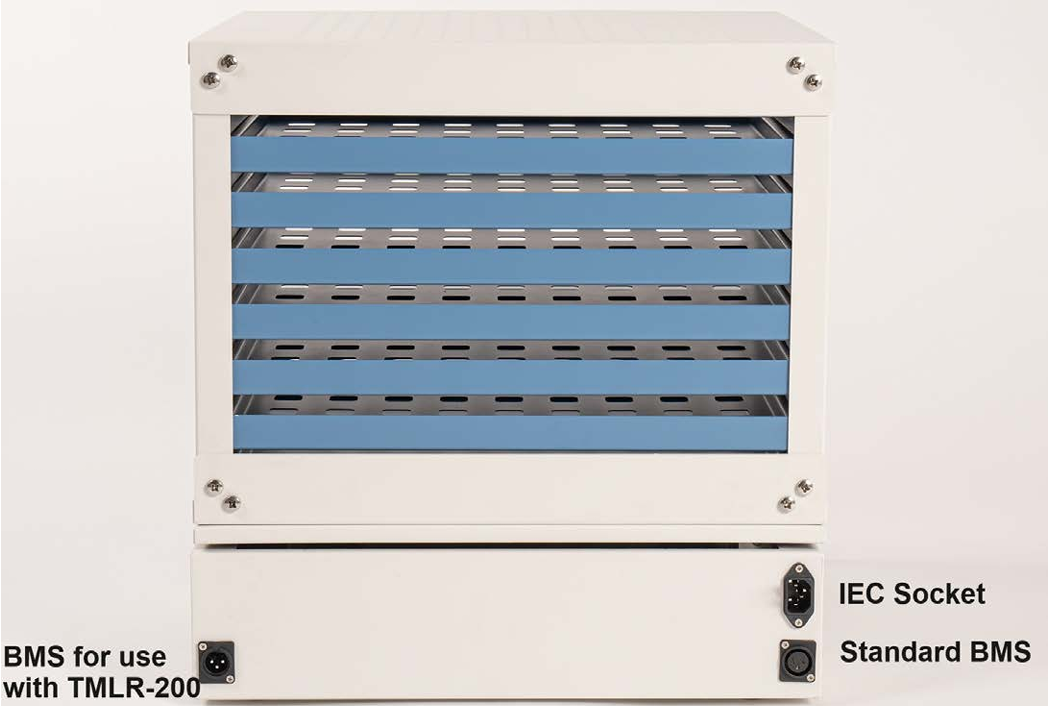

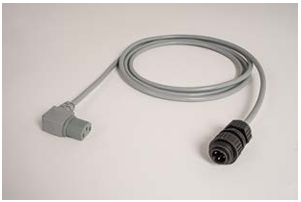

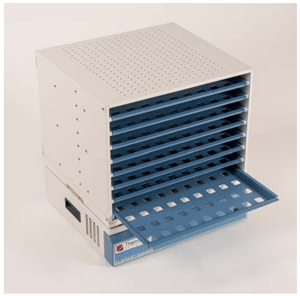

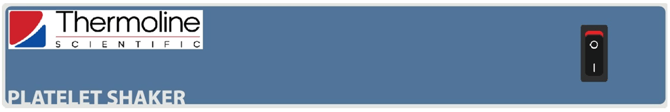

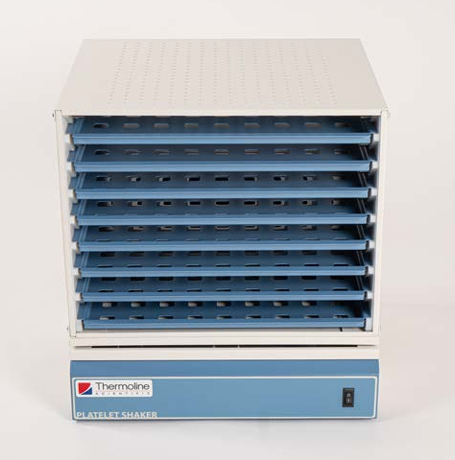

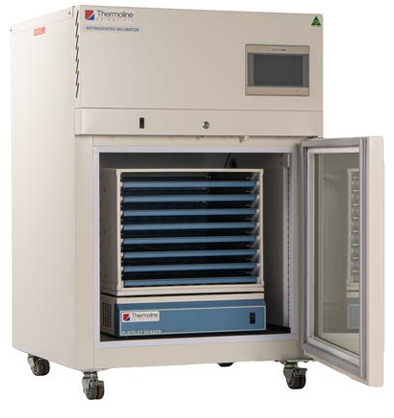

Skip to content
English
  • There are no suggestions because the search field is empty.

Setup and Installation | Platelet Shaker

Step-by-Step Guide to Setting Up Your Product Correctly

Applicable Models:

TPS-18

📜 Quick Navigation

Connecting to Power / Connecting to TMLR-200 Incubator

Loading the Platelet Shaker

BMS Output




Powering the Platelet Shaker

Follow these steps to correctly connect and power the platelet shaker:

  1. Connect the Power Lead:
    Plug the supplied lead into the male IEC socket located on the rear of the incubator. Then plug the 3-pin plug into a 10 amp general-purpose outlet.

  2. Special Setup for TMLR-200 Incubators:
    If using the platelet shaker inside a TMLR-200 incubator, use the special power lead provided. This cable transfers power directly from the incubator to the shaker.

  3. Switch On:
    Turn the main power switch to the ‘ON’ position to start the shaker.





Loading the Platelet Shaker

Follow these steps to safely load the shaker:

  1. Power Off:
    Turn off the main switch to stop shaker movement during loading.

  2. Extend Shelves:
    Gently pull out the shelves to access the trays. A stopper pin is in place to prevent the shelves from sliding out too far.

  3. Load the Trays:
    Place the items evenly onto the shelves.

  4. Power On:
    After loading, switch the main power back to 'ON' to resume shaking.

Note:
When used inside a TMLR-200 incubator, the heat generated by shaker operation helps maintain internal temperature. For this reason, agitation should remain active except during loading.

BMS Output

Platelet Shakers are fitted with a 3-pin socket for connection to a building monitoring system. See the BMS Connection page for more information on connecting to your system
