Getting Started | Climatron

Intended Use, Safety Guidelines, and Environmental Considerations

Download User Manual

Applicable Models:

CLIMATRON-520-DL
CLIMATRON-520-DL-H
CLIMATRON-110-DL
CLIMATRON-110-DL-H
CLIMATRON-520-SL
CLIMATRON-520-SL-H
CLIMATRON-110-SL
CLIMATRON-110-SL-H

📜 Quick Navigation




Intended Use

The Thermoline Climatron Growth Cabinet 360, 520, and 1100 models are designed and manufactured to maintain environmental conditions critical for general research, plant biology, soil science and agriculture research. The Thermoline Climatron Growth Cabinet offers an industry standard in Temperature & Humidity Control.

Uncrating/Unpacking

Unpacking process for foam wrapped and crated:

  • In most cases, the Climatron cabinet will be delivered foam-wrapped and on its castors via sensitive freight.
  • In remote areas, the cabinet may be delivered in a crate. To remove the crate:
    • Unscrew both the left and right sides of the packaging.
    • A forklift is required to lift the cabinet from the crate.
  • Please only dispose of the packaging once the Climatron cabinet is inspected. If any damage is found, contact your supplier or Thermoline immediately at:

Moving

Moving the Climatron cabinet:

  • Ensure that the Climatron cabinet is rolled on an even and at surface. Uneven surfaces can cause the cabinet to fall over.

IMPORTANT

Climatron cabinets are 'Top Heavy'. Do not move the cabinet too quickly. Move with caution and avoid sudden movements.

Operating Environment

Cabinet Location

  • Place the cabinet away from direct sunlight and heat sources (e.g., heaters).
  • Ensure the room's ambient temperature does not exceed the cabinet's operational limits.
  • The Climatron cabinet should be stored inside at all times. Failure to adhere to this could cause significant drops in cabinet performance and damage to items stored inside.

Environmental Conditions

Condition Temperature Humidity
Extreme Operating Environment 10°C to 32°C (±2.0°C) Up to 85% RH
Optimal Environment 23°C (±2.0°C) 50% RH (±5% RH)

Electrical Connections

All Climatron cabinets require a 10amp, 230V, 50Hz power supply. Use a dedicated outlet for the cabinet, and avoid using power boards or extension cords. Each cabinet is supplied with a standard 3-pin moulded plug for connection to the mains.

Power Supply:

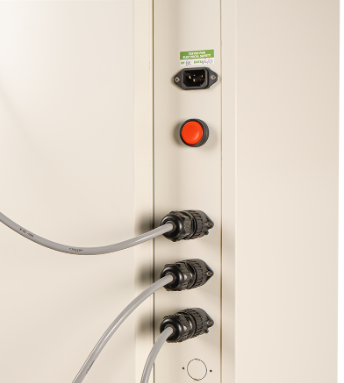

  • All Climatron cabinets come with a 2.5m removable mains power lead, featuring a three-pin plug and a female IEC plug. Ensure the cabinet is positioned at a reasonable distance from the power supply.

  • The cabinet itself has a male IEC socket.

Water Quality

For optimal performance, follow the recommended water quality parameters below. Due to the extensive use of stainless steel in Thermoline products, do not use deionised water. It can cause corrosion (due to leaching over time) that may not be covered under warranty.



Parameter Range
Resistivity 0.1 - 0.5 MΩ
Conductivity 2-10 µs/cm
Total Dissolved Solids <10 mg/L
Acidity 6-7 pH



Avoid tap water if possible. Using tap water may significantly increase the required frequency of cleaning and maintenance of the equipment. Unacceptable water can cause excess scale build-up and mineral deposits, particularly in humidity systems. This, in turn, can cause heater failure and issues with oat switches. In water baths, corrosion due to insucient cleaning is the primary concern, with heater circulators and circulation pumps being the most signicant issue.

Note: All Thermoline equipment using water requires regular maintenance, inspection and cleaning. Six monthly for Humiditherm, Envirotherm and Climatron cabinets. Water baths will require much more frequent cleaning due to the ease of contamination in the water. Water should be changed for any signs of contamination.



Warning WARNINGS

  • Climatron cabinets require ventilation around them. 100mm on either side and the back is necessary.
  • Climatron cabinets should be stored inside at all times. Failure to adhere to this could cause significant drops in cabinet performance and damage to items stored inside.
  • Ensure that the feed water is suitable for the cabinet.
  • Climatron cabinets are not suitable for use with flammable solvents! They are fitted with components that may be the source of ignition.
