User Manual | Flotation Bath

Complete user manual for Thermoline Flotation Bath



Contents

  1. Important Information
  2. Product Introduction
  3. Product Overview
  4. Working Environment
  5. Technical Parameters
  6. Instructions
    • 6.1 Unpacking Inspection
    • 6.2 Daily Use Operation
  7. Control Panel & Setup
    • 7.1 Control Panel
    • 7.2 Setup
  8. Cleaning and Maintenance
  9. Warranty


Important Information

Before using this product, please read this instruction manual carefully and retain it for future reference. For any inquiries, please contact customer service via:

Symbols and Icons

To ensure safe operation, familiarise yourself with the following symbols:

  • [Notice] (⚠️) – Alerts about potential injury or damage.
  • [Caution: Hot Surface] (♨️) – Surface may become hot during use.



Safety Instructions

  • Connect the device to a power supply using the provided electrical cord, ensuring voltage compatibility.
  • Use only a grounded power socket.
  • If the power cord is damaged, isolate the bath and replace or repair the cord.
  • Place the unit on a stable, level surface, away from high temperatures and humidity.
  • Do not operate with wet hands.
  • Avoid using the device in areas with electromagnetic interference.
  • Do not disassemble or modify the device without manufacturer approval.
  • Clean only with mild soap; avoid solvents like acetone and xylene.



Product Introduction

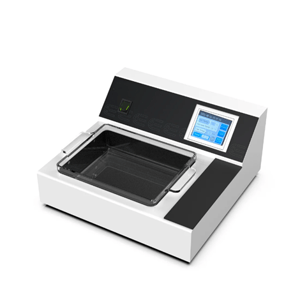

The Thermoline Tissue Flotation Bath is a precision temperature-controlled water bath designed to eliminate wrinkles and distortion when preparing paraffin-embedded tissue sections. The unit features:

  • High-definition touchscreen for easy operation.
  • Microprocessor-controlled temperature regulation (accurate within ±1°C).
  • Safety over-temperature protection that automatically shuts off the unit.
  • Nonvolatile memory to retain temperature settings after power cycling.
  • Timer and alarm reminders for efficient operation.
  • Auto on/off programming to reduce warm-up time.
  • Fan-less design for reduced noise.
  • Embedded thermocouple for precise temperature measurement.



Product Overview

Packing List

  • (1) Tissue flotation bath (main unit)
  • (1) Glass dish
  • (1) Power cord and two fuses
  • (1) Instruction manual



Working Environment

  • Power supply: AC220V ± 10%, 50Hz ± 1Hz
  • Operating temperature range: 5°C to 30°C
  • Relative humidity: ≤80%



Technical Parameters

Parameter

Specification

Temperature Range

Ambient to 60°C

Voltage

AC220V ±10%, 50Hz ±1Hz

Power Consumption

200W

Dimensions (LxWxH)

327 × 340 × 166mm

Glass Dish Size (LxWxH)

210 × 168 × 55mm



Instructions

6.1 Unpacking Inspection

  1. Verify package contents using the packing list.
  2. Place the main unit on a stable, level surface.
  3. Ensure the operating environment meets manual requirements.
  4. Plug in and power on the unit, confirming that the LCD display and panel function correctly.
  5. Turn on heating to test the flotation bath.
  6. Activate the bath light to check its function.
  7. Perform a tissue slide smoothing test to confirm proper operation.

6.2 Daily Use Operation

  1. Fill 2/3 of the glass dish with water.
  2. Turn on the device (LCD screen activates, entering standby mode).
  3. Set the desired temperature and timer, then press the Heater button to start heating.
  4. When the water reaches the set temperature, the unit is ready for use.
  5. Press Heater again to turn off heating after use.
  6. Wipe the unit's surface clean once the operation is finished.



Control Panel & Setup

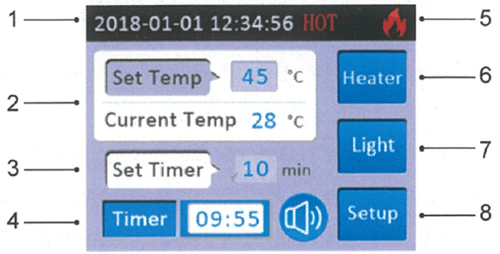

7.1 Control Panel

  1. Date/Time – Set the date/time (format: YYYY-MM-DD, HH:MM:SS).
  2. Set Temperature – Adjust and confirm desired temperature.
  3. Set Timer – Adjust and confirm timer settings.
  4. Start Timer – Activate countdown timer (alarm sounds when time expires).
  5. Flame Icon – Indicates active heating.
  6. Heater Button – Toggle heating on/off.
  7. Light Button – Toggle bath light light on/off.
  8. Setup Button – Adjust auto-off, screen brightness, basin light, and restore defaults.

Note: The "HOT" icon flashes when the surface temperature exceeds 50°C. Avoid contact when this icon is displayed.



7.2 Setup

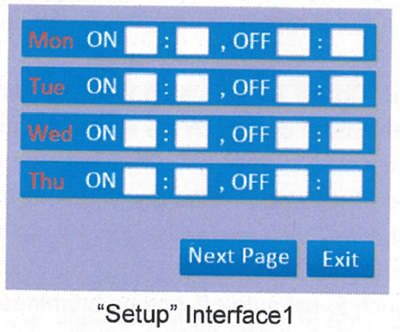

Auto On/Off Settings

  1. Tap Setup on the main interface.
  2. Configure auto-on/off times separately for Monday-Thursday and Friday-Sunday (24-hour format, HH:MM; "99:99" disables auto-on/off).
  3. Adjust settings using the interface, then confirm by pressing Enter.

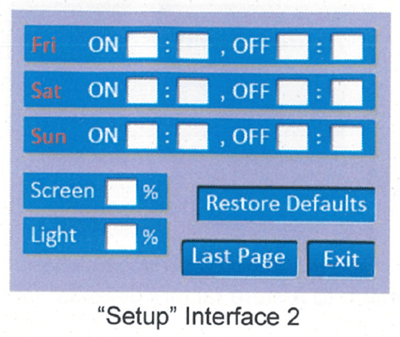

Screen & Bath Light Brightness

  1. Tap Setup > Next Page.
  2. Adjust screen or bath light illumination brightness.



Restore Factory Defaults

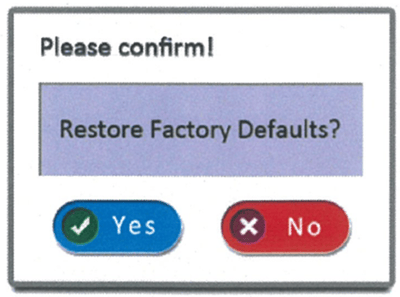

  1. Tap Setup > Next Page > Restore Defaults.
  2. Confirm settings on the pop-up screen.



Cleaning & Maintenance

  • Clean only with water and mild detergent.
  • Avoid solvents such as acetone or xylene.
  • Do not clean the internal components with liquid.
  • Wipe external surfaces with a clean, dry cloth after use.
