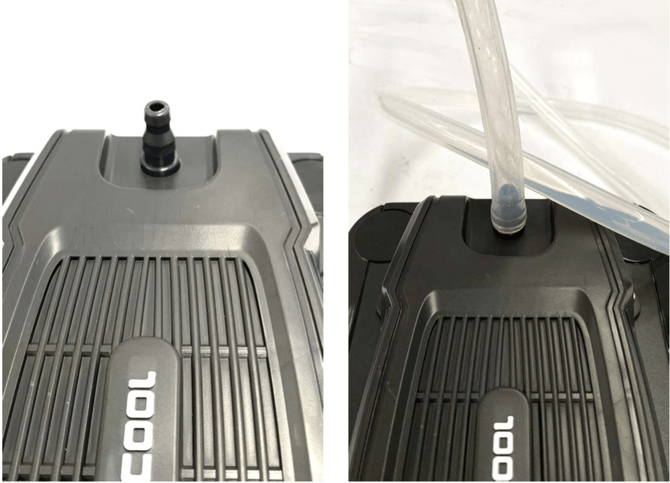

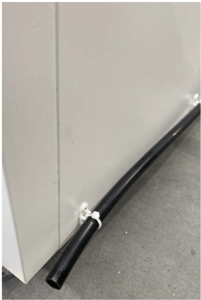

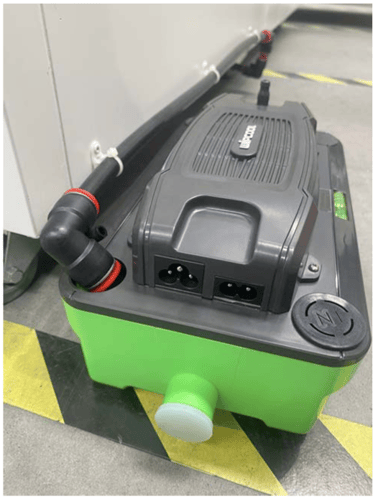

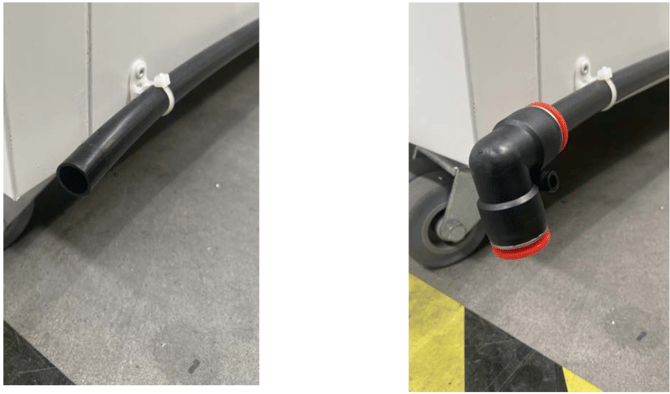

Skip to content
English
Contact us
  • There are no suggestions because the search field is empty.

P-380 Drain Pump - Climatron

This article provides a detailed installation guide for the P-380 Drain Pump, designed to collect and pump drain water when a floor drain is unavailable.

Applicable Models:
CLIMATRON-520-DL
CLIMATRON-520-DL-H
CLIMATRON-1100-DL
CLIMATRON-1100-DL-H
CLIMATRON-520-SL
CLIMATRON-520-SL-H
CLIMATRON-1100-SL
CLIMATRON-1100-SL-H

P380-1-png

  • Placement:

    The drain location on the Climatron cabinet's back should align with the drain pump. A 12mm plastic elbow is provided to connect the drain hose, preventing spills.

  • Installation:

    Place the pump inlet cover under the elbow attached to the cabinet’s drain hose.

    The supplied plastic elbow is designed to connect securely to the black hose, enabling the drain to empty effectively into the drain pump while preventing spills. To ensure a tight and leak-free connection, attach the elbow to the black hose by pushing it firmly into place.

    Remove one of the inlet covers of the drain pump and place it under the elbow at the end of the drain on the Climatron cabinet (with the elbow inside of the tank).

    Note: Use the pump's built-in spirit level to ensure it is level. If not level, the pump’s internal float switches may fail to activate.

    Once the pump is in place, take the drain hose and fit it to the nozzle on the back of the pump. Once it is done, place the end of the hose in your nearest drain. Please make sure to fix the end of the hose in place, as the water pressure from the pump could cause the hose to flail around.

    Note: Should the supplied 1.5m of hose not be long enough, you will need to purchase additional silicone hose with the the following parameters: ID=8mm, OD = 12mm OD, Platinum 60 Duro translucent.

    • Power ON:

      • Plug the 3-pin moulded plug into a 10amp 230V GPO. Turning on the power at the GPO will activate the pump, which is then controlled by the internal float switch to pump out as required.

    • Support: Thermoline offers telephone support (02 9604 3911) during business hours and email support at service@thermoline.com.au.
