Intended Use
The variable-speed vortex mixer is designed for efficient liquid mixing. It features a rotary dial for precise speed selection and offers two operating modes: touch and continuous. A three-way power switch allows users to switch between these modes. The sturdy metallic base and optimal dynamic balancing minimise movement and reduce vibrations during operation.
Unpacking
- The vortex mixer will be delivered securely packed in a carton.
- If any damage is found upon opening the package, report it immediately to your supplier or Thermoline at +61 2 9604 3911 or service@thermoline.com.au
Packing List
| TVM-1 | |
| Vortex Mixer | 1 |
| Power Pack and Lead | 1 |

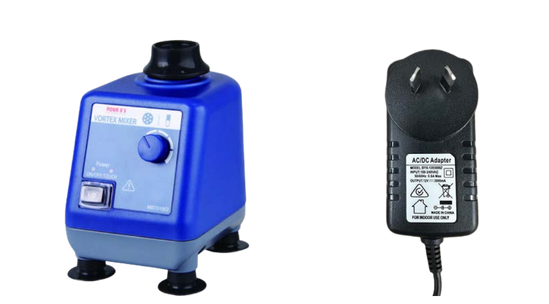

Vortex Mixer Components
Operating Environment
Vortex Mixer Location
- Place the vortex mixer away from direct sunlight and heat sources (e.g., heaters).
- Ensure the room's ambient temperature does not exceed the vortex mixer's operational limits.
- Vortex Mixers should be stored inside at all times.
- Ensure the vortex mixer is placed on a stable, level surface, and that the mains plug and power switch remain easily accessible.
Environmental Conditions

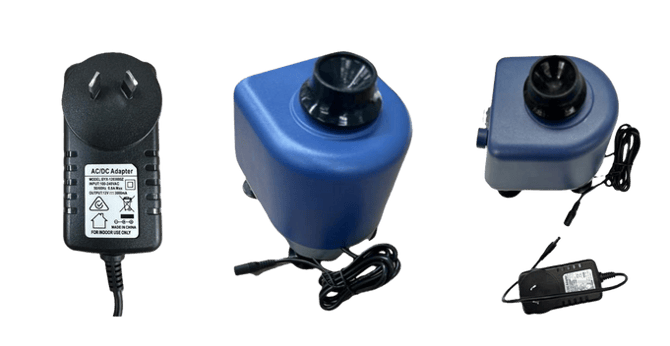

Electrical Connections
- The vortex mixer requires a 10Amp, 230V, 50Hz power supply.
- A dedicated outlet should be used for the vortex mixer. Do not use power boards or similar devices.
- The vortex mixer includes a removable mains power pack, which connects to the lead on the mixer.
Operating Environment Warnings
-
The platelet shaker should be stored inside at all times. Failure to do so may cause significant drops in performance and potential damage to stored items.
-
The platelet shaker is not suitable for use with flammable solvents. It is fitted with components that may be a source of ignition.
- When removing the packaging from the vortex mixer, use caution when cutting tape and cardboard to avoid damage or injury.
