Getting Started | Laboratory Shakers

Intended Use, Safety Guidelines, and Environmental Considerations

Download User Manual

Applicable Models:

TS-OL-4E
TS-3D-4E
TS-RK-4E

📜 Quick Navigation

Intended Use

Unpacking

Shaker Components

Operating Environment

Electrical Connections

🔍 Need More Information?

📦 Setup & Installation

⚙️ Operating Procedures

🧰 Maintenance & Cleaning

🔧 Troubleshooting & Repair

📜 Warranty & Support





Intended Use

The Thermoline range of shakers includes orbital, linear, rocker, and 3D models, offering versatility for various applications. A range of accessories is also available, ensuring compatibility with different sample types.

Unpacking

  • The laboratory shaker is packed in a carton for delivery.
  • Refer to the diagrams below for proper unpacking instructions.
  • If any damage is found upon opening, report it immediately to your supplier or Thermoline at +61 2 9604 3911 or service@thermoline.com.au

Unpacking Cartons

Packing List

  TS-OL-4E TS-RK-4E TS-3D-4E
Power Lead 1 1 1
Universal attachment with 4 bars 1 Optional Optional
Non-slip mat Optional 1 1
Fixed string Optional 6 6
Rubber plug 4 N/A N/A
Column (Linear) 4 N/A N/A
Operating manual Downloaded from the Thermoline Website



Shaker Components

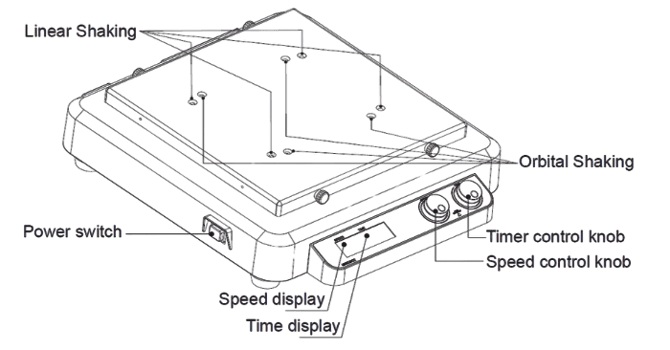

Orbital/Linear Shaker (TS-OL-4E)

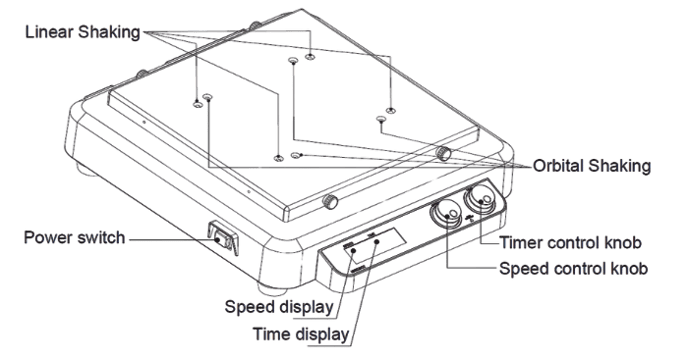

Orbital Shaker Components

Rocker Shaker (TS-RK-4E)

Rocker Shaker Components

3D Shaker (TS-3D-4E)

3D Shaker Components

Speed Control Knob

Set target speed. Push on/off the knob to start/stop the shaking function.
Timer Control Knob Set target time. Push on/off the knob to start/stop the shaking function.
Speed Display Display the set and real speed values.
Time Display Display the set and remain time values.
Power Switch Switch ON/OFF instrument.

Operating Environment

Shaker Location

  • Place the shaker away from direct sunlight and heat sources (e.g., heaters).
  • Ensure the room's ambient temperature does not exceed the shaker's operational limits.
  • Shakers should be stored inside at all times.

Environmental Conditions

Condition Temperature Humidity
Extreme Operating Environment 5°C to 40°C Up to 80% RH
Optimal Environment 23°C (±5°C) 50% RH (±25% RH)

Electrical Connections

  • The laboratory shaker requires a 10Amp, 230V, 50Hz power supply.
  • A dedicated outlet should be used for all laboratory shakers. Do not use power boards or similar devices. The laboratory shaker includes a removable mains power lead with a three-pin plug and a straight female IEC plug.
  • On the rear of the laboratory shaker, there is a 10Amp male IEC socket (power port) with a power switch located on the left-hand side. Ensure that both the mains plug and the switch are easily accessible.

Warning WARNINGS

  • Laboratory shakers should be stored indoors at all times.

  • Laboratory shakers are not suitable for use with flammable solvents, as they contain components that may act as an ignition source.

  • Exercise caution when removing packaging from the laboratory shaker, especially when using knives to cut tape and cardboard.
