Getting Started | Laboratory Refrigerators

Intended Use

The Thermoline Laboratory Refrigerators—145, 200, 520, 750, 950, and 1500 models—are designed and manufactured to provide safe and precise temperature control for stored items. Operating between +4°C and +10°C, with alarms set 3°C above and below the setpoint, these refrigerators feature industry-standard forced draught refrigeration for reliable performance.

• Control Stability: +/- 0.5°C
• Operating Temperature: +4°C to +10°C

Uncrating/Unpacking

Unpacking process for foam wrapped or boxed

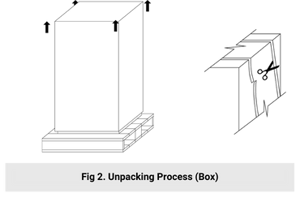

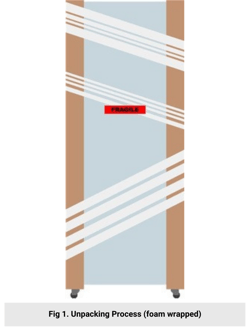

• In most cases, the refrigerator will be delivered foam-wrapped and on its castors via sensitive freight (Fig 1). The 145 and 200 models will be delivered in a box on a skid (Fig 2).

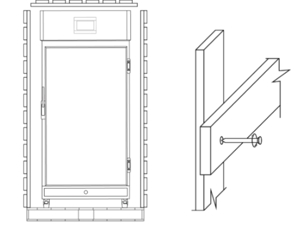

• The refrigerator may be delivered to remote areas in a crate. To remove the crate packaging, unscrew both the left and right sides. A forklift is required to remove the refrigerator from the crate.
• Please only dispose of the packaging once the the refrigerator is inspected. If any damage is found, contact your supplier or Thermoline immediately at:





Moving

Moving the refrigerator on castors:

• Ensure that the refrigerator is rolled on an even and flat surface. Uneven surfaces can cause the refrigerator to fall over.

IMPORTANT

Refrigerators are 'Top Heavy'. Do not move the cabinet too quickly. (Fig 3 & 4)
