Getting Started | Dry Block Heaters

Intended Use, Safety Guidelines, and Environmental Considerations

Download User Manual

Applicable Models:

TDB-1-4E
TDB-2-4E
TDB-4-4E

📜 Quick Navigation

Intended Use

Unpacking

Electrical Connections

Components



🔍 Need More Information?

📦 Setup & Installation

⚙️ Operating Procedures

🧰 Maintenance & Cleaning

🔧 Troubleshooting & Repair

📜 Warranty & Support



Intended Use

The Thermoline Dry Block Heater is designed to provide uniform dry heating of various shapes and sizes of tubes and vials featuring a wide temperature range from ambient +5°C to 150°C with an accurate control stability of +/- 0.2°C.

Heating blocks provide a safe, convenient and productive alternative to heating mantles and hotplates for accurate heating of PCR tubes, PCR strips, microcentrifuge tubes, microplates and cuvettes. Our single and triple aluminium block designs offer precise temperature control in small vessels.

Unpacking

  • The dry block heater will be delivered packed in a carton.

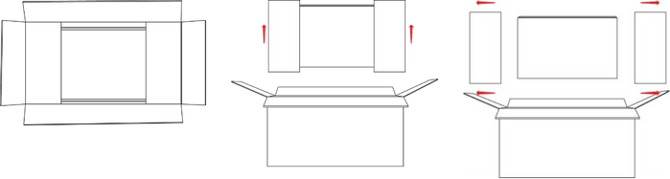

  • Please see the below diagrams for removing the dry block heater from the carton.
  • If upon opening your package, damage is present, notify the detail of any damage to your supplier or to Thermoline without delay at +61 2 9604 3911 or email at service@thermoline.com.au.

Unpacking of Dry Block HeaterPacking List

Packing List

Electrical Connections

All dry block heaters require a 10amp, 230V, 50Hz power supply. Use a dedicated outlet for the dry block heater, and avoid using power boards or extension cords. Each unit is supplied with a standard 3-pin moulded plug for connection to the mains.

Power Supply:

All dry block heaters are equipped with a 2.5m removable mains power lead, featuring a three-pin plug and a female IEC plug. Ensure the dry block heater is positioned at a reasonable distance from the power supply to prevent strain on the power lead.

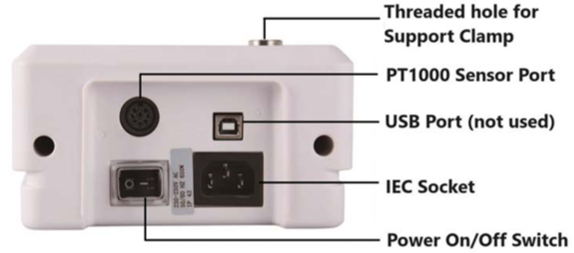

The dry block heater itself is fitted with a male IEC socket for secure connection.

The main power switch is located at the rear of the block heater.

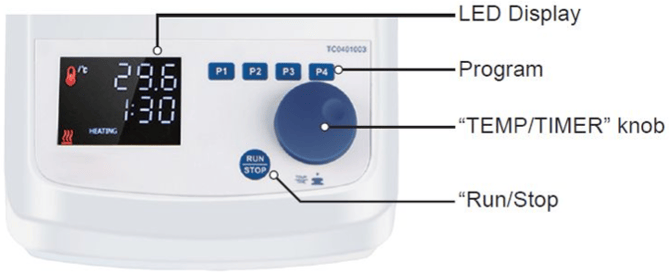

Components

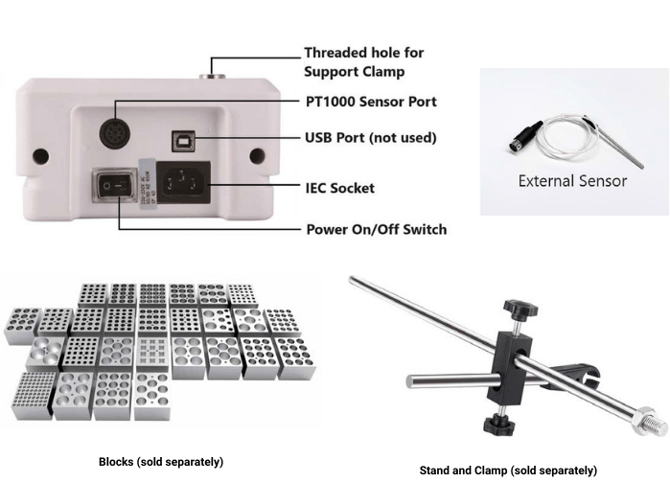

Dry Block Heater Components



Warning WARNINGS

  • Dry block heaters should be stored inside at all times. Failure to adhere to this could cause significant drops in performance and damage to items stored inside.
  • The dry block heaters are not suitable for use with flammable solvents! They are fitted with components that may be the source of ignition.
  • Dry block heaters heat up to 150⁰C and can become hot. This includes the blocks.
  • When you remove packaging from the dry block heater you should be careful when using knives to cut tape and cardboard.
