Intended Use
The Thermoline Laboratory Benchtop Incubators are designed and manufactured to provide a controlled and precise temperature environment for stored items. These incubators operate within a temperature range of Ambient +5°C to +60°C, with a control accuracy of ±0.1°C.
To ensure optimal performance, the incubator must be used indoors and should not be placed in environments where the ambient temperature exceeds 32°C.
Key Features:
- Stainless steel interior
- Operating temperature from ambient +5°C to +60°C
- Fibreglass insulation
- Electronically controlled heating element
- Monitoring port hole
- Removeable stainless steel shelves
- Switchable fan forced mode
- Optional inner polycarbonate door (standard on TI280F)
Unpacking
Packaging Information
- TI-20F and TI-50F models are packed in a carton.
- TI-80F and larger models are packed in a box and placed on a skid for transport.
Unpacking Instructions
- For models TI-80F and larger, carefully cut the straps securing the box to the skid.

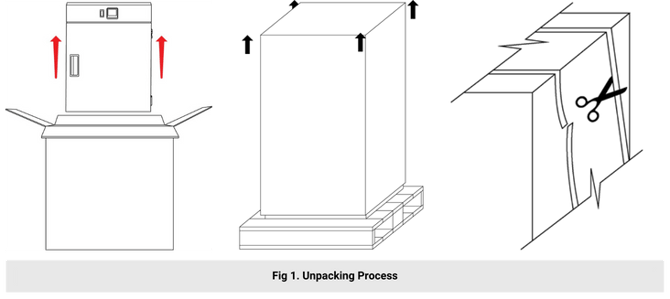

- Once the straps are removed, lift the box upwards to expose the incubator. (See Fig. 1)
- Inspect the incubator for any visible damage.
If any damage is detected upon opening, contact your supplier or Thermoline immediately on +61 2 9604 3911 or email at service@thermoline.com.au.
Moving and Lifting
The incubator may be heavy. Take caution when moving or positioning it.
Operating Environment
Location
- Place the incubator away from direct sunlight and heat sources (e.g., heaters).
- Ensure the room's ambient temperature does not exceed the cabinet's operational limits.
- The Incubator should be stored inside at all times. Failure to adhere to this could cause significant drops in cabinet performance and damage to items stored inside.
Environmental Conditions
| Condition | Temperature | Humidity |
| Extreme Operating Environment | 10°C to 32°C | Up to 85% RH |
| Optimal Environment | 23°C (±5°C) | 50% RH (±25% RH) |
Electrical Connections
All incubators require a 10amp, 230V, 50Hz power supply. Use a dedicated outlet for the cabinet, and avoid using power boards or extension cords. Each cabinet is supplied with a standard 3-pin moulded plug for connection to the mains.
Power Supply:
-
All incubators come with a 2.5m removable mains power lead, featuring a three-pin plug and a female IEC plug. Ensure the cabinet is positioned at a reasonable distance from the power supply.
-
The cabinet itself has a male IEC socket.
WARNINGS
-
The incubator should be stored indoors at all times. Failure to adhere to this could cause significant drops in cabinet performance and damage to items stored inside.
-
Incubators are not suitable for use with flammable solvents, as they are fitted with components that may be a source of ignition.
-
The incubator will generate heat during use. As a result, the inner liner of the cabinet may be hot to touch. Proceed with caution.
