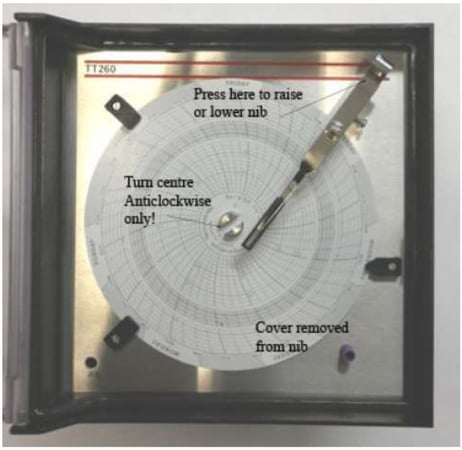

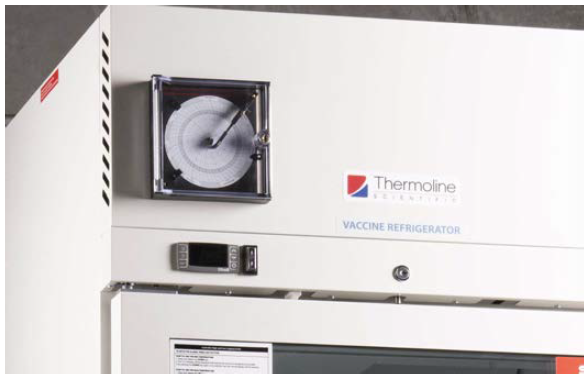

Skip to content
English
Contact us
  • There are no suggestions because the search field is empty.

7-day Chart Recorder

A circular chart recorder can be factory-fitted as an optional extra. The recorder has a seven-day chart with a battery backup that will keep the chart running for at least 24 hours in the event of a power failure.

Setting Time

  1. Unlock the recorder door with the key.
  2. Lift the pen nib off the chart by pressing the lever in the top right.
  3. Use a flat screwdriver to turn the centre slot anticlockwise to set the time.
  4. Lower the nib onto the chart, close the door, and lock it.

Replacing Chart Papers

  1. Unlock the door with the key.
  2. Lift the pen nib off the chart by pressing the lever in the top right.
  3. Remove the old chart paper and place the new one under the locating tabs.
  4. Lower the nib onto the new chart, close the door, and lock it.

These steps allow users to maintain the chart recorder’s time and chart paper accurately.
